drones + RTK

Westlat drone surveying

Our fleet has grown! Give us a call to discuss your project needs!

Screen Shot 2018-11-19 at 10.25.29 AM.png

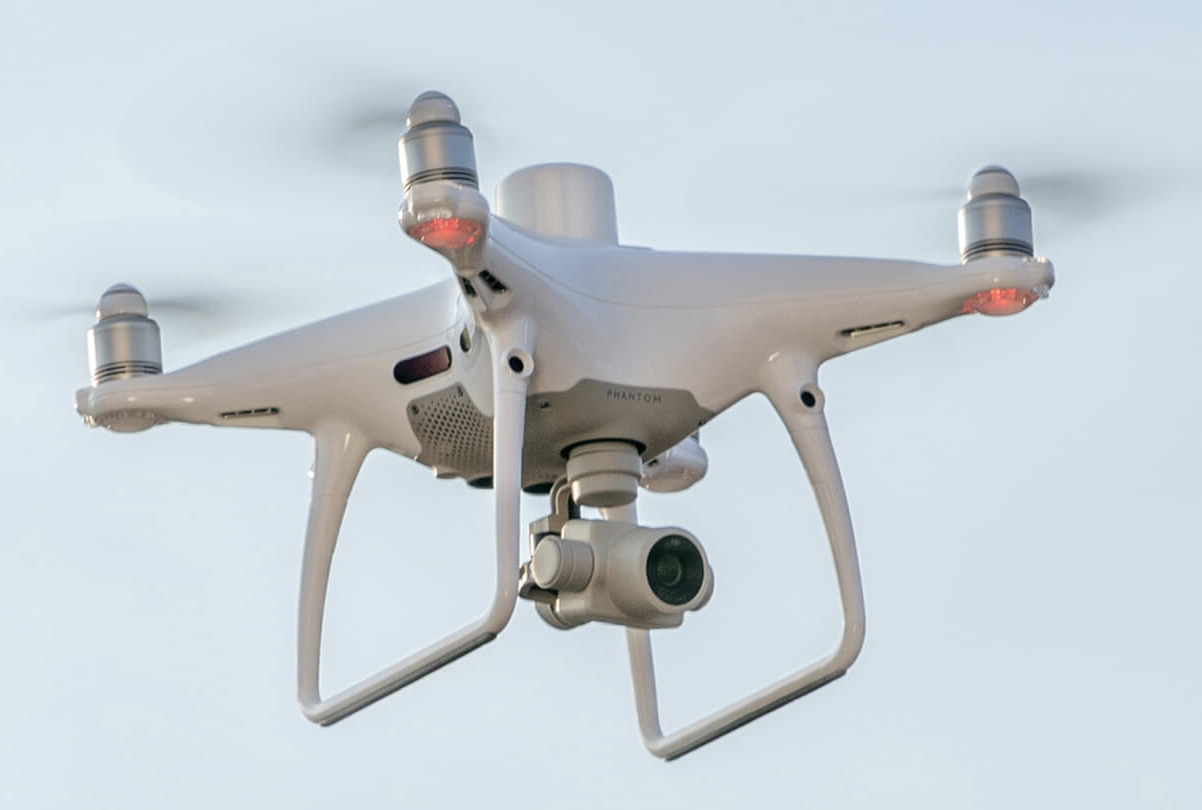

DJI Phantom 4 rtk

Centimeter Level Positioning System

A new RTK module is integrated directly into the Phantom 4 RTK, providing real-time, centimeter-level positioning data for improved absolute accuracy on image metadata. Sitting just beneath the RTK receiver is a redundant GNSS module, installed to maintain flight stability in signal-poor regions such as dense cities. Combining both modules, the Phantom 4 RTK is able to optimize flight safety while ensuring the most precise data is captured for complex surveying, mapping and inspection workflows.

Fit the Phantom 4 RTK to any workflow, with the ability to connect this positioning system to the D-RTK 2 Mobile Station, NTRIP (Network Transport of RTCM via Internet Protocol) using a 4G dongle or WiFi hotspot, or store the satellite observation data to be used for Post Processed Kinematics (PPK).

Screen Shot 2018-11-19 at 10.29.04 AM.png

MATRICE 600PRO

The Matrice 600 Pro (M600 Pro) inherits everything from the M600 with improved flight performance and better loading capacity.Pre-installed arms and antennas reduce time required for setup, and the system’s modular design makes it easy to mount additional modules.The airframe is equipped with the latest DJI technologies, including the A3 Pro flight controller, Lightbridge 2 HD transmission system, Intelligent Batteries and Battery Management system. Several Zenmuse cameras and gimbals are natively compatible and full integration with third party software and hardware make the M600 Pro ideal for professional aerial photography and industrial applications.

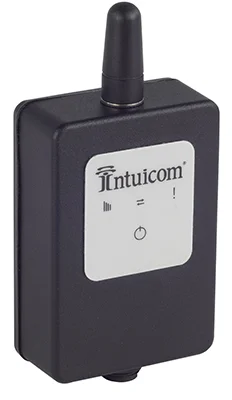

intuicom rtk Bridge x

The RTK Bridge®-X now supports the faster upload/download speeds, the expanded coverage and enhanced connectivity avaiable from 4G LTE providers. Supporting all leading precision guidance systems and GNSS manufacturers, the 4G LTE RTK Bridge®-X further distances itself from less robust modems by allowing users to remotely access, configure and manage their device without being connected by a physical cable--an industry exclusive! The 4G LTE RTK Bridge®-X takes productivity to a whole new level. Save money, save time, stay connected.
